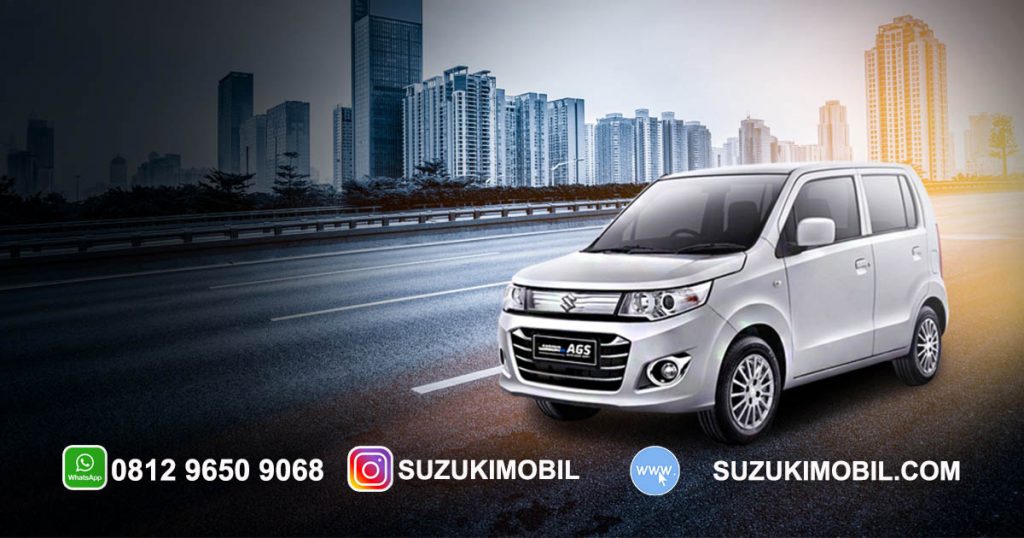

KARIMUN WAGON R GS
KARIMUN WAGON R GS Temukan kemewahan gaya Anda bersama Karimun Wagon R GS. Detail yang impresif, modern, dan stylish mengundang decak kagum cerminan karakter diri Anda sesungguhnya. Karimun Wagon R GS dengan transmisi Auto Gear Shift (AGS). Tersedia dalam 6 varian warna, di antaranya: Pearl White, Silky Silver, Graphite Gray, Cool Black, Radiant Red & Burgundy Red.
[tabs][tab title=”Eksterior”]
[/tab] [tab title=”Interior”]
[/tab] [tab title=”Performa”]
[/tab] [tab title=”Safety”]
[/tab][/tabs]
| Dimensi | ||
| Panjang Keseluruhan | 3.600 mm | |
| Lebar Keseluruhan | 1.475 mm | |
| Tinggi Keseluruhan | 1.670 – 1.700 mm | |
| Jarak Poros Roda | 2.400 mm | |
| Jarak Pijak Depan | 1.295 mm | |
| Jarak Pijak Belakang | 1.290 mm | |
| Jarak Terendah | 170 mm | |
| Radius Putar Minimum | 4.6 m | |
| Mesin | ||
| Jenis | K10B engine with DOHC | |
| Isi Silinder | 998 cc | |
| Jumlah Katup | 12 valves | |
| Jumlah Silinder | 3 inline | |
| Diameter x Langkah | 73.0 x 79.5 mm | |
| Perbandingan Kompresi | 10:01 | |
| Daya Maksimum | 68PS/6.200rpm | |
| Momem Puntir Maksimum | 90Nm/3.500rpm | |
| Sistem Bahan Bakar | Multi Point Injection | |
| Transmisi | ||
| Perbandingan Gigi Akhir | M/T: 4.388 / AGS:4.705 | |
| Ratio Gear | ||
| Gear | MT | AGS |
| 1 | 3.545 | 3.545 |
| 2 | 1.904 | 1.904 |
| 3 | 1.28 | 1.28 |
| 4 | 0.966 | 0.906 |
| 5 | 0.783 | 0.717 |
| Mundur/Rv5 | 3.272 | 3.272 |
| Berat | ||
| Berat Kosong | 825-835 kg | |
| Berat Kotor | 1.350 kg | |
| Rangka | ||
| Sistem Kemudi | Rack and Pinion | |
| Suspensi Depan | MacPherson Strut with coil spring | |
| Suspensi Belakang | 3-Links Rigid with coil spring | |
| Rem Depan | Ventilated disc | |
| Rem Belakang | ||
| Ukuran Ban | 145/80 R13 | |
| Kapasitas | ||
| Tempat Duduk | 5 Orang | |
| Tangki Bahan Bakar | 35 Liter |
Warna Karimun Wagon R GS
[tabs][tab title=”karimun gs pearl white
“][/tab] [tab title=”karimun gs silver”]
[/tab] [tab title=”karimun radiant red”]
[/tab] [tab title=”karimun gs graphite grey”]
[/tab] [tab title=”karimun gs cool black”]
[/tab] [tab title=”karimun gs burgundy”]
[/tab][/tabs]
